VJ 1580 C soft-pigmented contrast printer

Category Videojet CIJ Printer

The 1580 C is a dedicated soft-pigmented contrast printer that performs and behaves like a standard dye-based printer
It delivers industry-first performance using opaque soft-pigmented inks, providing superior uptime and enabling you to achieve your marking and coding objectives both now and in the future

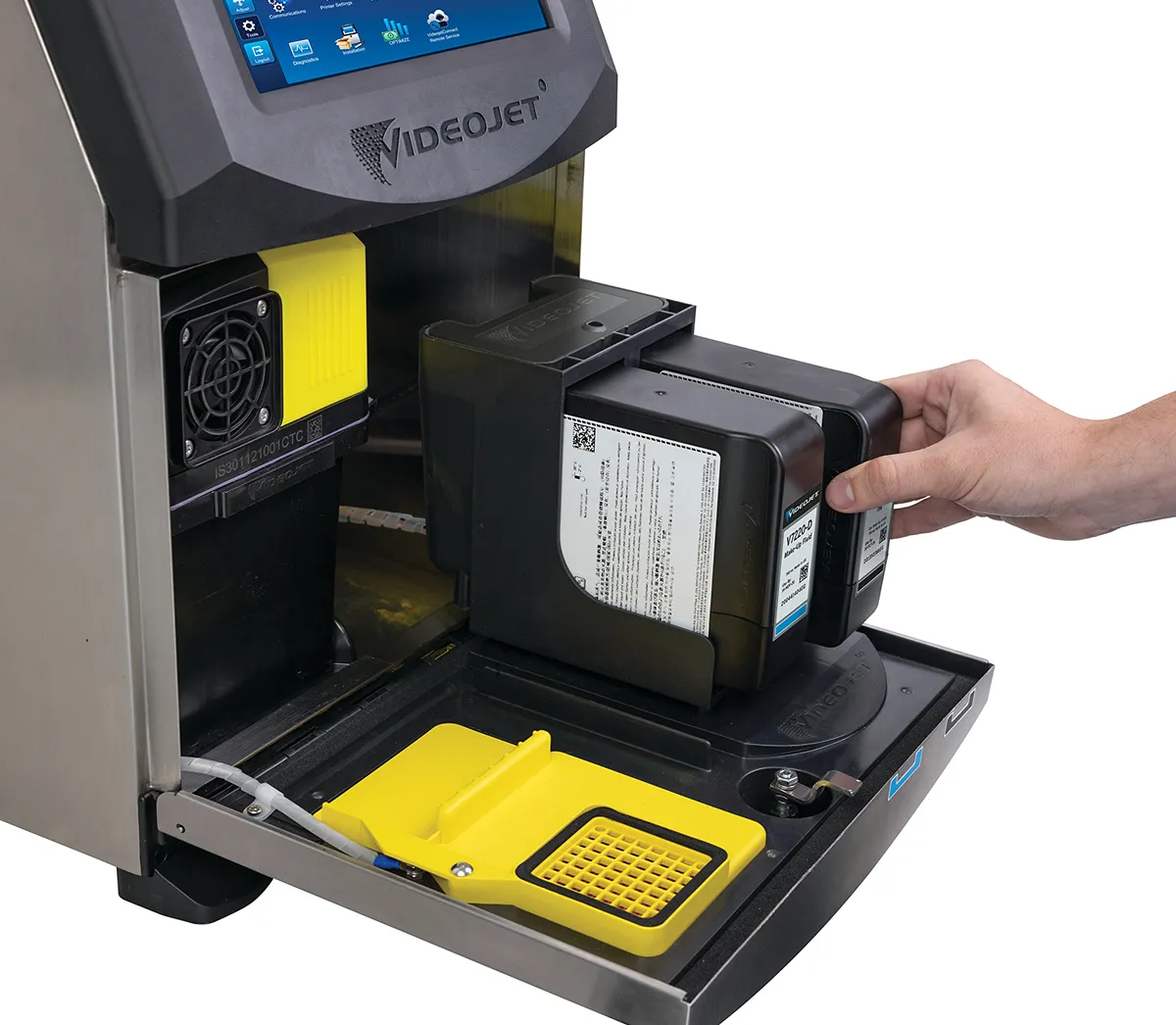

The 1580 C has similar maintenance requirements and running time to a standard CIJ printer, due to design innovations in our hydraulics, printhead, and cartridge
Based on our tried and trusted Videojet 1580 inkjet printer platform, the 1580 C has a similar design, with many of the same great features
The 1580 C is one of the simplest CIJ printers to operate and maintain, and was designed to print consistently high-quality codes with strong contrast

Specs

Specification	Value
Printheads	1
Inks	Soft-pigmented
Maximum Lines of Print per Printhead	5
Maximum Line Speed ⁽¹⁾	271 m/min (889 ft/min)
Environmental Protection	IP55 (Dust Kit IP65 #)
Umbilical Length	3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage Capability	More than 250 complex messages
Smart Cartridge™	Included
Plug and Play Printhead Modules	Included
USB	Included
Communications	Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity
Linear and 2D Bar Codes	Included
Positive Air / CleanFlow™	Optional
Display (User Interface)	SIMPLICiTY™ based 10 inch color touchscreen

⁽¹⁾ Based upon single line, 10 characters per inch
