VJ 7510 fiber laser marks on robust materials

Categories: ,

Laser Marking Systems

High-contrast marking at ultra-fast line speeds.

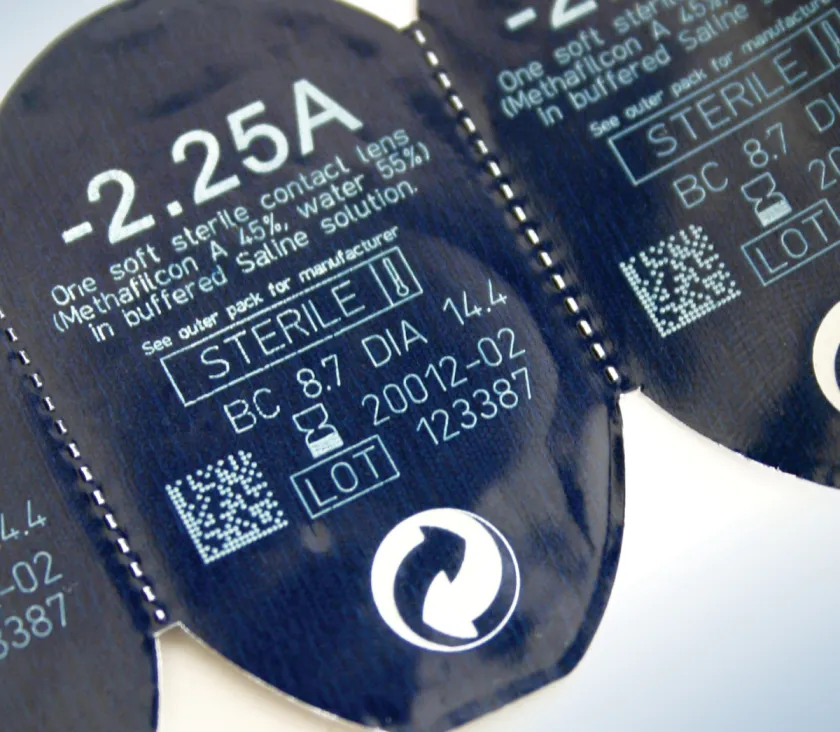

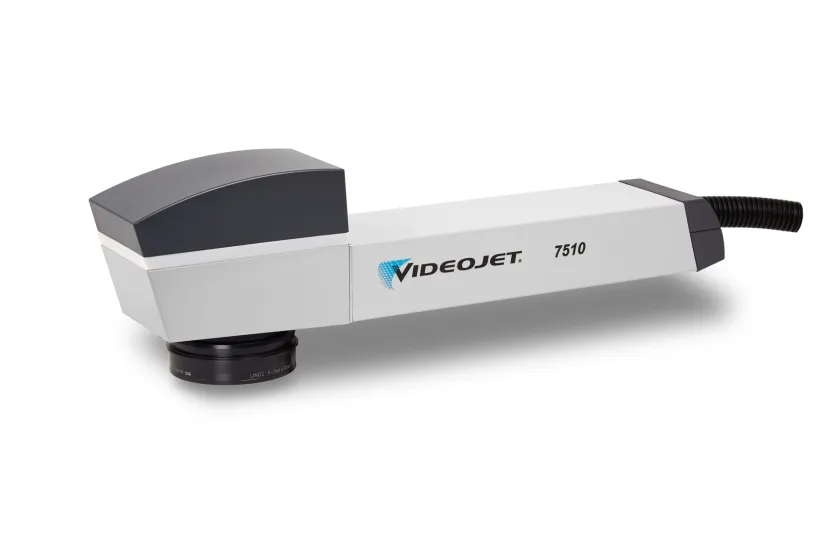

The Videojet 7510 50-Watt fiber laser marking system delivers advantaged performance for high contrast marking on robust plastic packaging, metal containers and other industrial products even at ultra-fast line speeds up to 600m/min. Specifically engineered for high speed beverage, pharmaceutical and extrusion manufacturers, the 7510 delivers better mark quality, higher efficiency and a dramatically smaller marking unit than traditional solid state laser systems.

And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other printers can’t

Request Quote
Brochure

Specs

Specification Value
Laser Tube Ytterbium (Yb) pulsed fiber laser
Maximum Power 50-Watt
Laser Cooling Air Cooled
Maximum Line Speed 600m/min (1960ft/min)
Environmental Protection Marking Unit: IP54 Supply Unit: IP21
Beam Output Steered Beam
Laser Source Expected Life (MTBF) Up to 100,000 hours (MTBF)
Laser Wavelength Options 1.06µm – 1.07µm
Focal Distance Options 100/163/254/420mm (3.93/6.41/10/16.53in)
Maximum Mark Window 498.5 x 366.5 mm (19.62 x 14.43 in)
Standard I/O Connectivity Internal Terminal Connections
Standard User Interface Smartgraph PC software

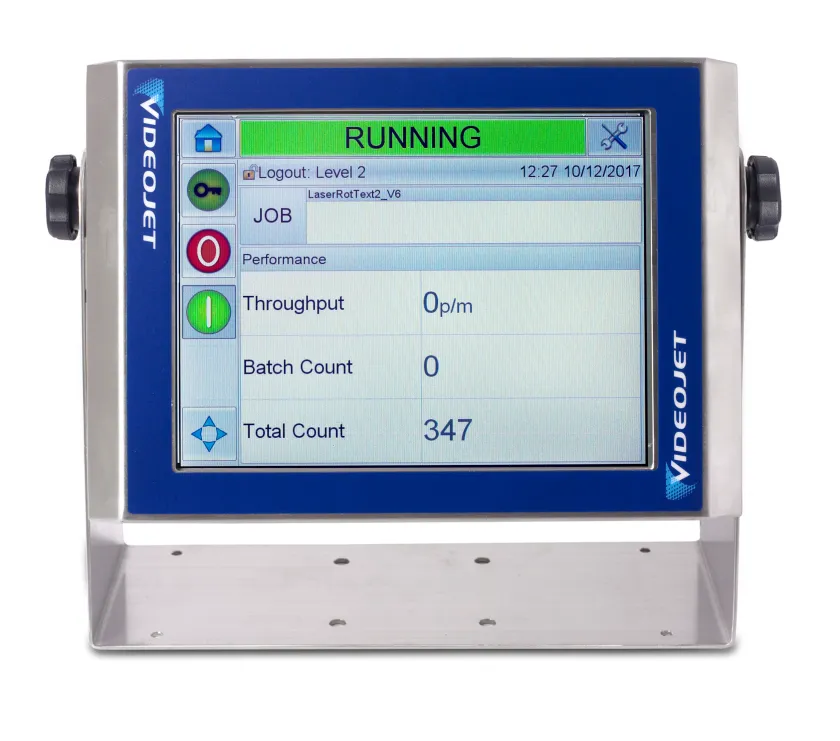

Optional User Interface CLARiTY Laser Controller
Certifications/Approvals CE TUV

Download full spec sheet

Benefits

Uptime advantage through highly efficient laser source

  • Maximum performance and laser source life expectancy up to 100,000 hours (mean time before failure)
  • Highly efficient air cooled laser source virtually eliminates maintenance intervals
  • 90% more energy efficient compared to predecessor 100W Nd:YAG laser systems

Increase productivity and mark more content at higher speeds

  • Optimized to mark-on-the-fly at line speeds up to 600m per minute
  • Large marking window provides more time to mark, increasing throughput and maximizing productivity
  • CLARiTY Laser Controller features built-in productivity tools to help identify the root cause of downtime events and make sustainable process improvements

Mark the right codes time after time

  • High precision scan head delivers consistent high quality codes across the entire mark window
  • CLARITY Laser Controller uses built-in Code Assurance software to help prevent operator coding errors
  • Permanent codes help assure product traceability and tamper-proofing

Simple usability and seamless integration

  • Compact mechanical design with two beam delivery options simplifies integration
  • Intuitive color, touchscreen interface option makes training and usability quick and easy
